SMP3-Streamer
EMF Measuring System for Automotive Standards:

The measurement of ElectroMagnetic Fields for human exposure is becoming increasingly important, especially with the introduction of electric vehicles and increase of electronics devices inside. These measurements are essential to assure safety against human exposure to ElectroMagnetic Fields (EMF).

ORDER NOW

Compliance with automotive standards

Real Time Simultaneous Measurements

Simplified Setup

Multiple Probes system measurements

Magnetic field Measurements

Data export

COMPATIBLE FIELD PROBES

DC 1 Hz 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz 100 MHz 1 GHz 10 GHz 100 GHz Magnetic Field – H WP10M — 1 Hz – 10 MHz WPH60 — 300 kHz – 60 MHz WPH1000 WPF3 — 100 kHz – 3 GHz WPF6 — 100 kHz – 6 GHz WP50 — 10 Hz – 3 kHz WP400, WP400c, WP400-3 — 1 Hz – 400 kHz WPH-DC — DC – 40 kHz WPF8 — 100 kHz – 8 GHz WPF18 — 1 MHz – 18 GHz WPF40 — 1 MHz – 40 GHz WPF60, WPF60s — 1 MHz – 60 GHz 30 MHz – 1000 MHz Electric and Magnetic Field – E&H Electric Field – E WPF90 — 30 MHz – 90 GHz

SMP3-Streamer

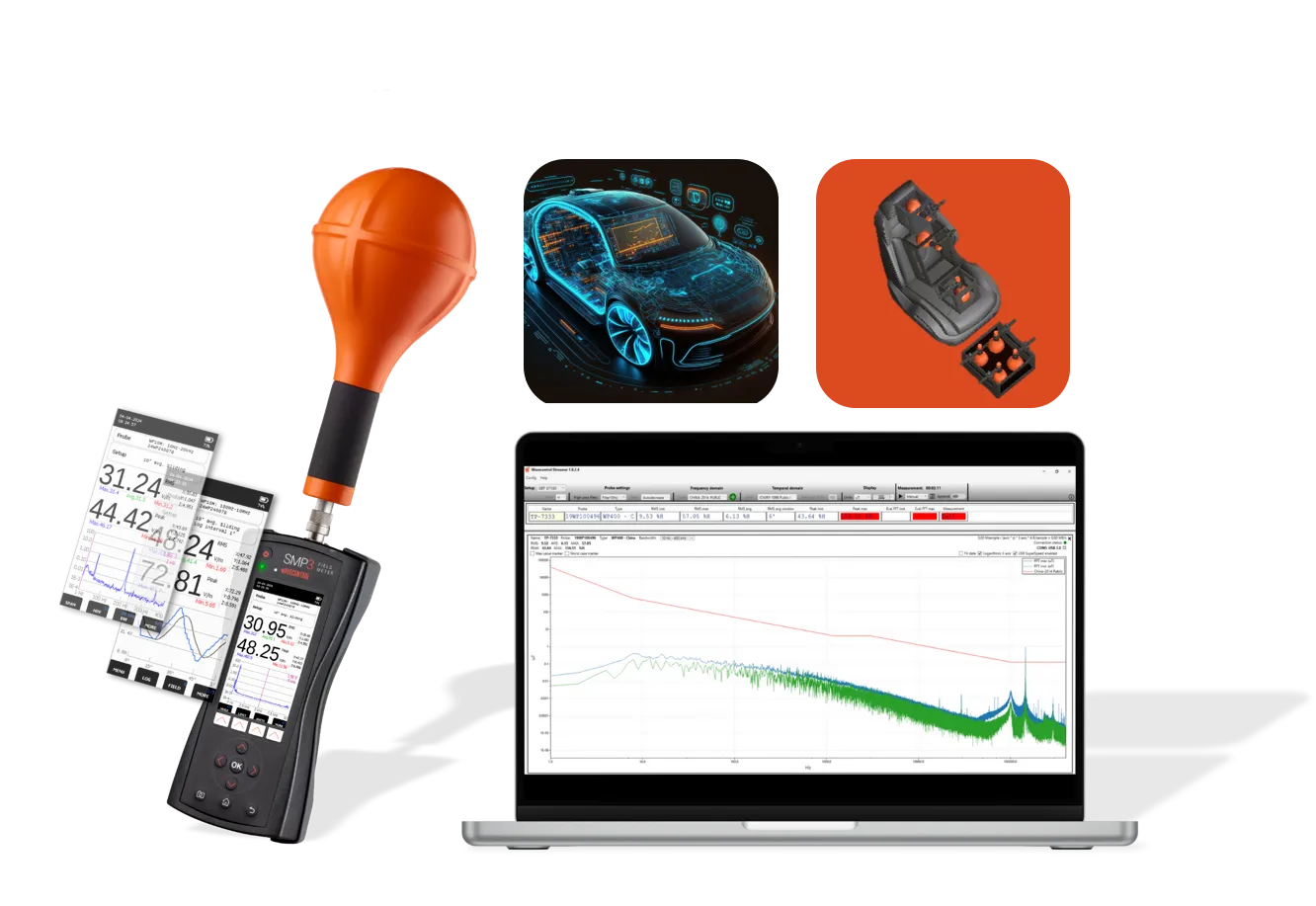

SMP3 Streamer is a real-time electromagnetic field measuring system according to newer automotive test requirements about human exposure to electromagnetic fields, like GB/T 37130, MBN 10284-2, TSC 7048G and many others.

INTERNATIONAL STANDARDS

EUROPEAN DIRECTIVE 2013/35/EU

Protection for workers against exposure to electromagnetic fields. Compliance with EN standards.

FCC / OSHA

SAFETY CODE 6

American and Canadian regulations for human exposure to electromagnetic fields.

STANDARDS IEC, EN, IEEE, ITU, ICNIRP

International standards and recommendations for the assessment of electromagnetic exposure.

SMP3-Streamer Features

  • Simplified Setup: The SMP3 Streamer system does not require any additional hardware or test equipment, offering a simplified test setup for both full vehicle and components testing. Maximum flexibility and usability for the test operators.
  • Magnetic field Measurement: The SMP3 Streamer is used for measuring Magnetic field from 1 Hz to 400 kHz in the time and frequency domain with real-time FFT results. The data can be analysed and saved to a PC without the need of an external acquisition card.
  • Real Time Simultaneous Measurements: Time and frequency domain measurements can be done simultaneously, with independently selectable limits for both measurements. Results are shown in real time during measurements.
  • Speed: SMP3 with SMP3-Streamer option is an extremely fast test system due to simultaneous measurements for time and frequency domains, real-time results, fast speed communication and no need to communicate with external equipment.
  • Multiple Probes system measurement: Multiple device measurements can be done simultaneously. Up to 7 devices can be used to facilitate assessment of multiple points in a vehicle test at the same time, reducing test time dramatically.
  • Multi-Standard System: The SMP3 streamer system is a multi-standard measuring device. Operator can choose from pre-defined setups according to specific standards, or select any standard or limit from the available list. Customized frequency domain limits are also possible through a limit editor.
  • Compliance with automotive standards: He software is designed to comply with the latest automotive standards. It allows for measuring all aspects of the automotive vehicle including the car seats, electrical and electronic components in all operational modes. The software indicates FAIL/PASS during the measurement (real-time).
  • Data export: Measured data is exported to an Excel type file with a summary of all test points and specific information for both time domain and frequency domain. All raw data is also available for post-processing

DOWNLOADS

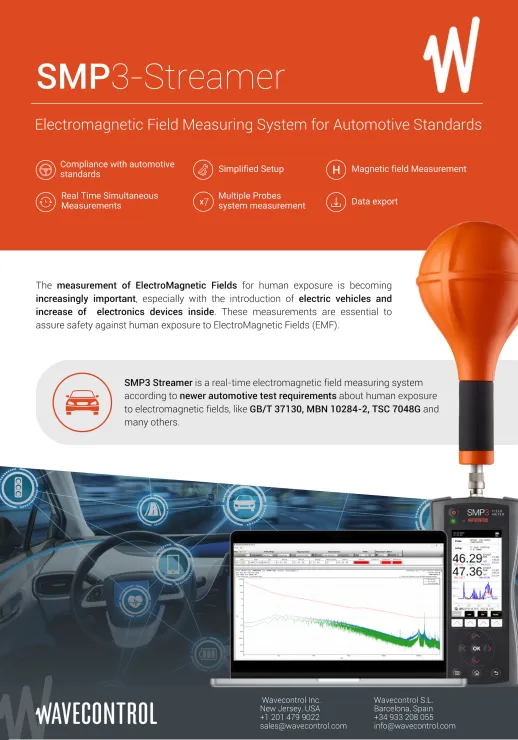

Datasheet
